Compatibility
PlayStation 3
CECHH
CECHJ
CECHK
Technician’s Notes

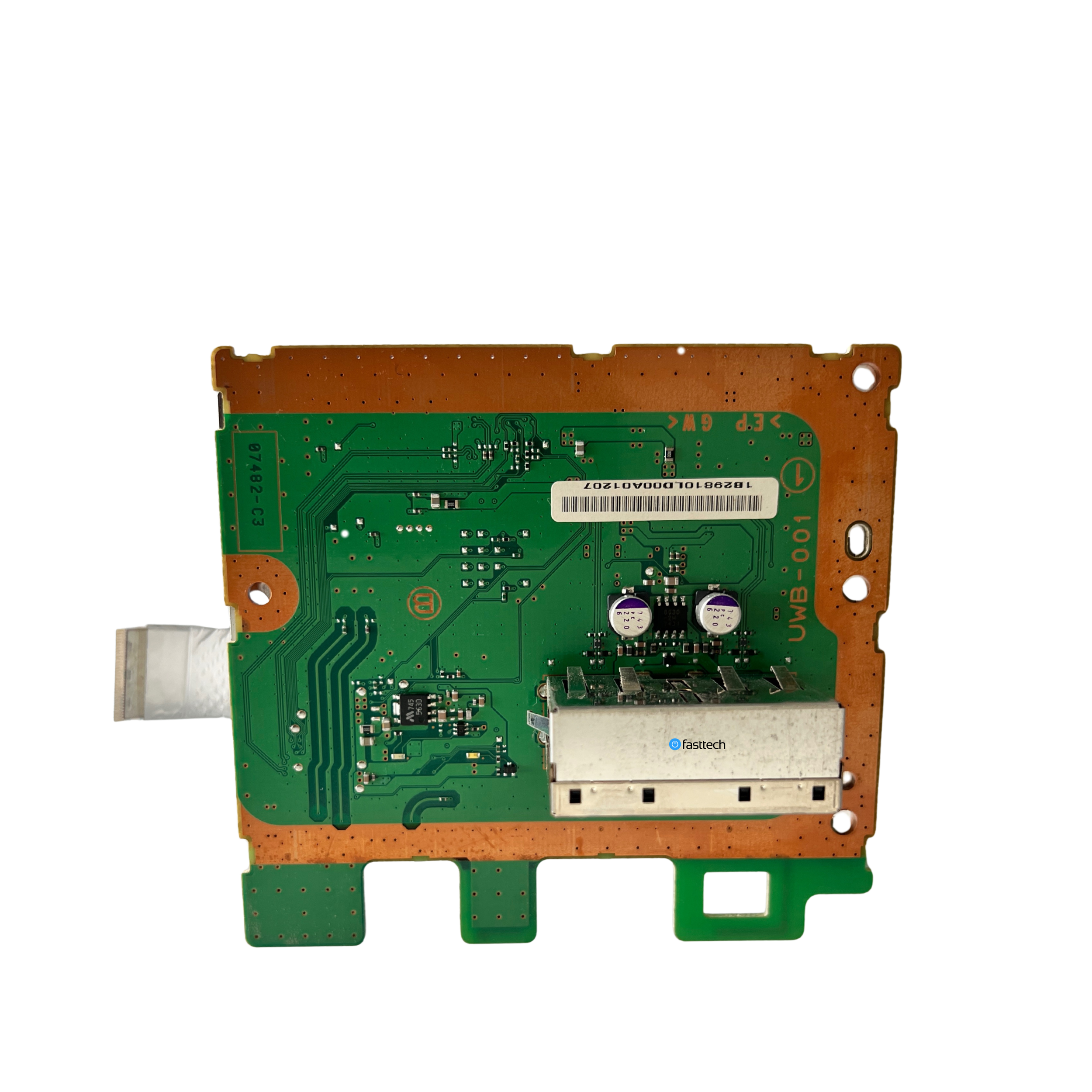

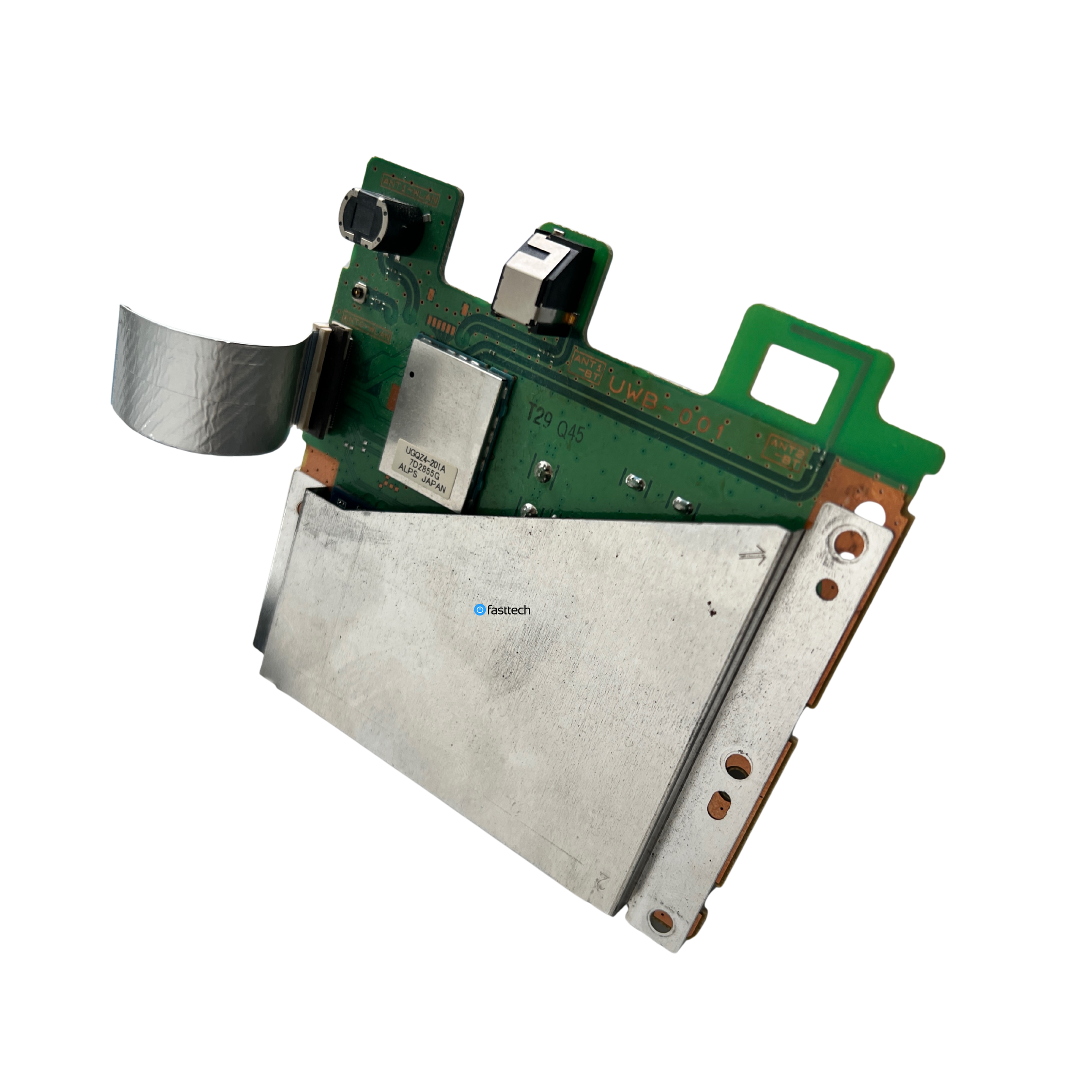

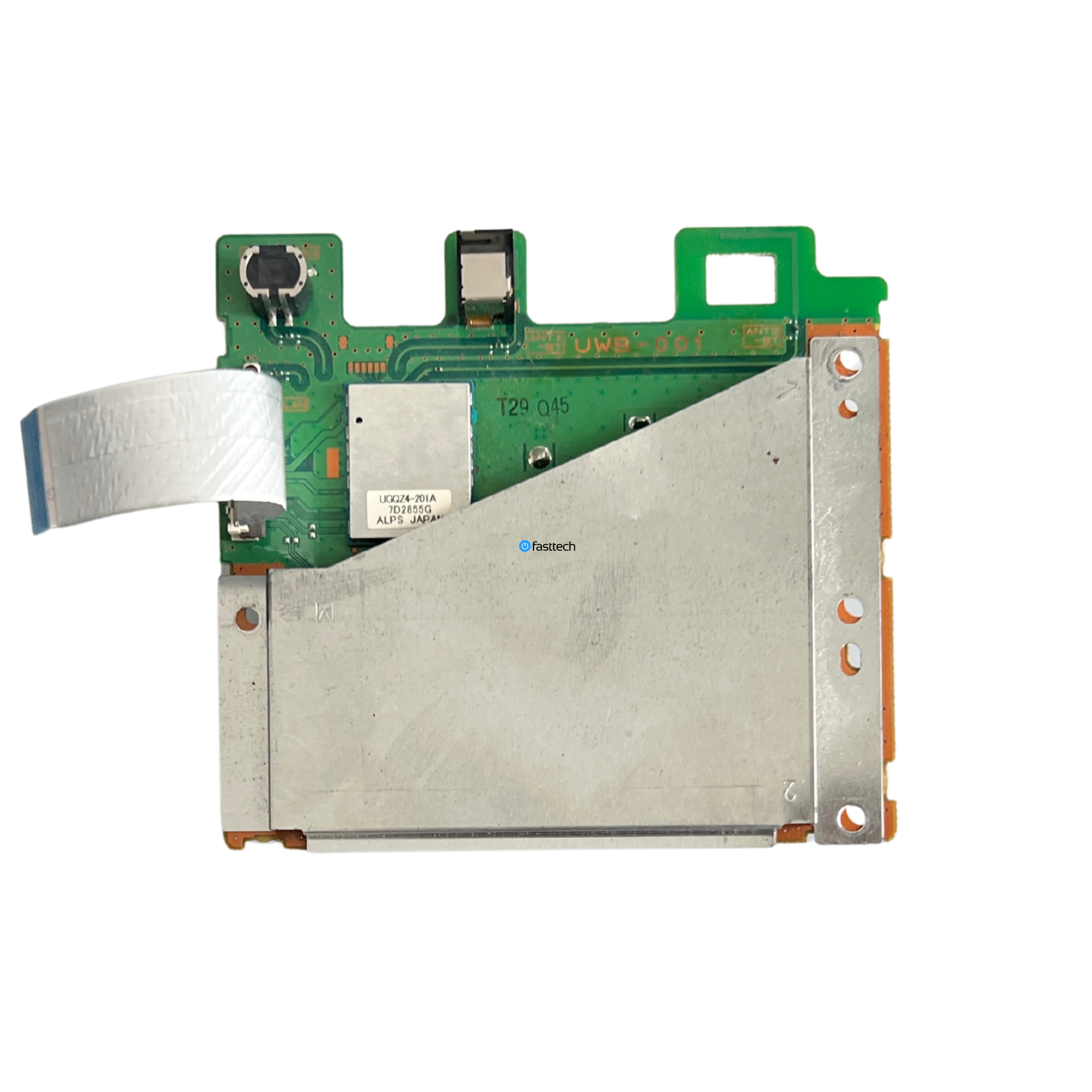

If you PS3 is no longer connecting to your controller and/or not connecting to your WiFi, the problem is most likely caused by a bad wireless module. On these model PS3s this module also houses the front USB ports.
