Technician’s Notes

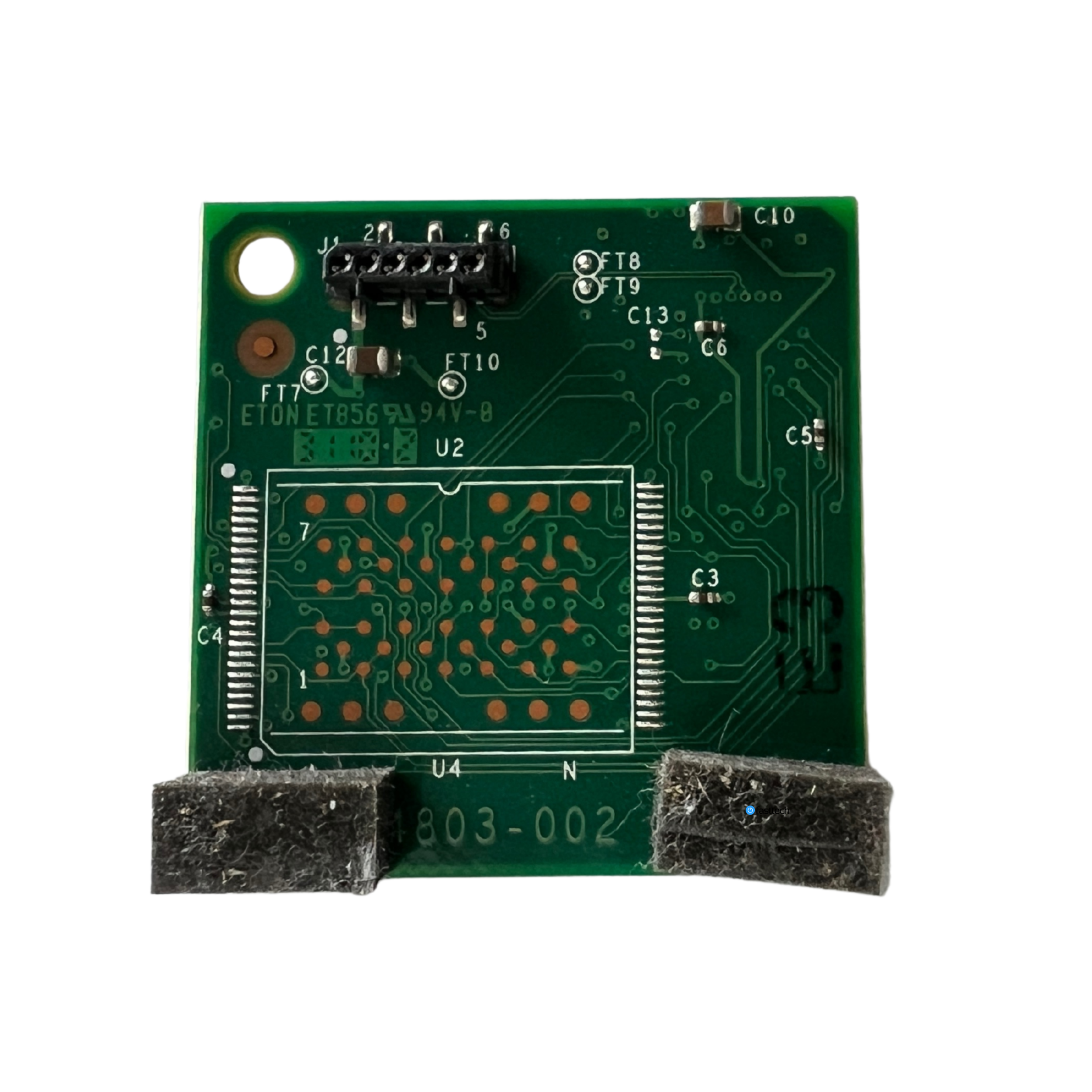

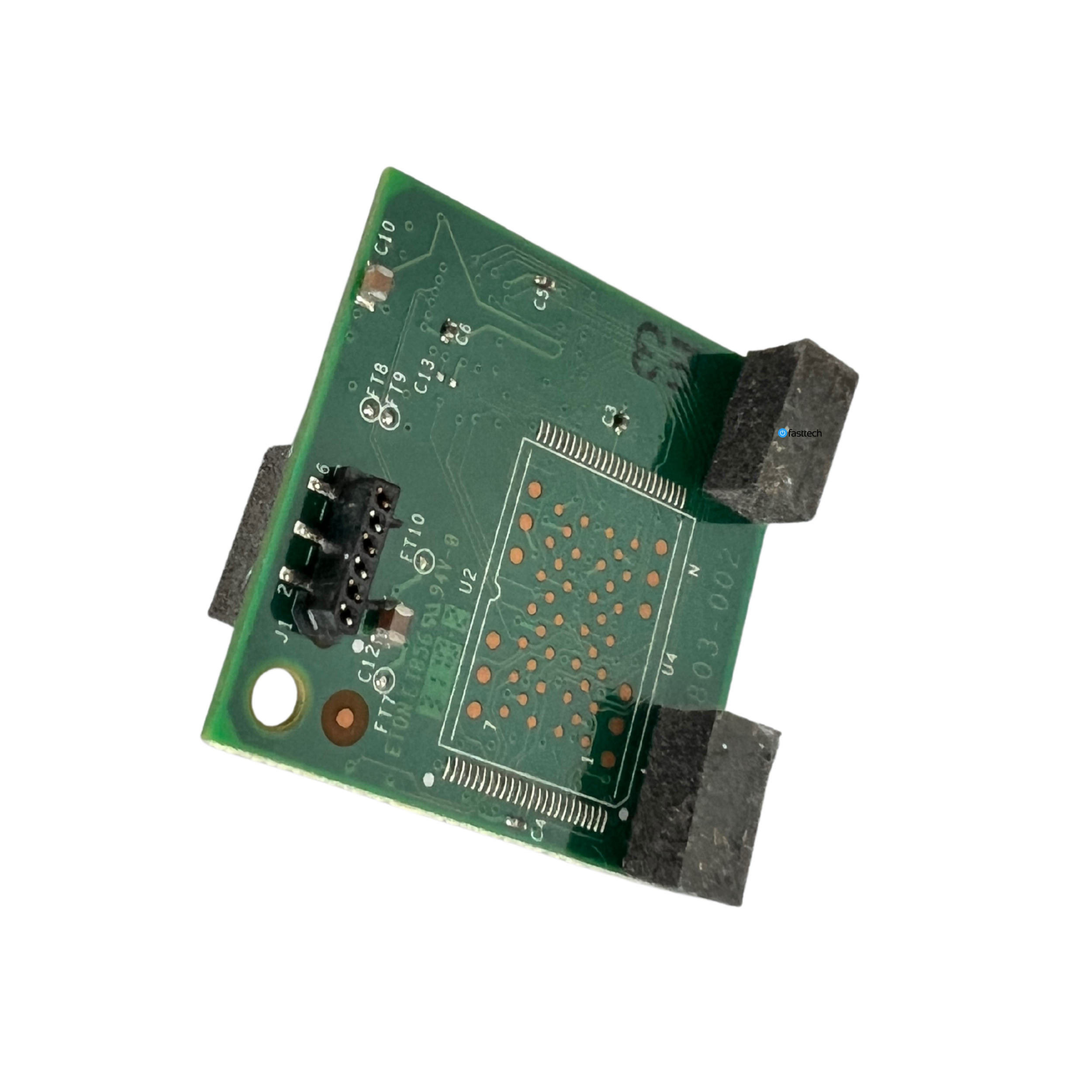

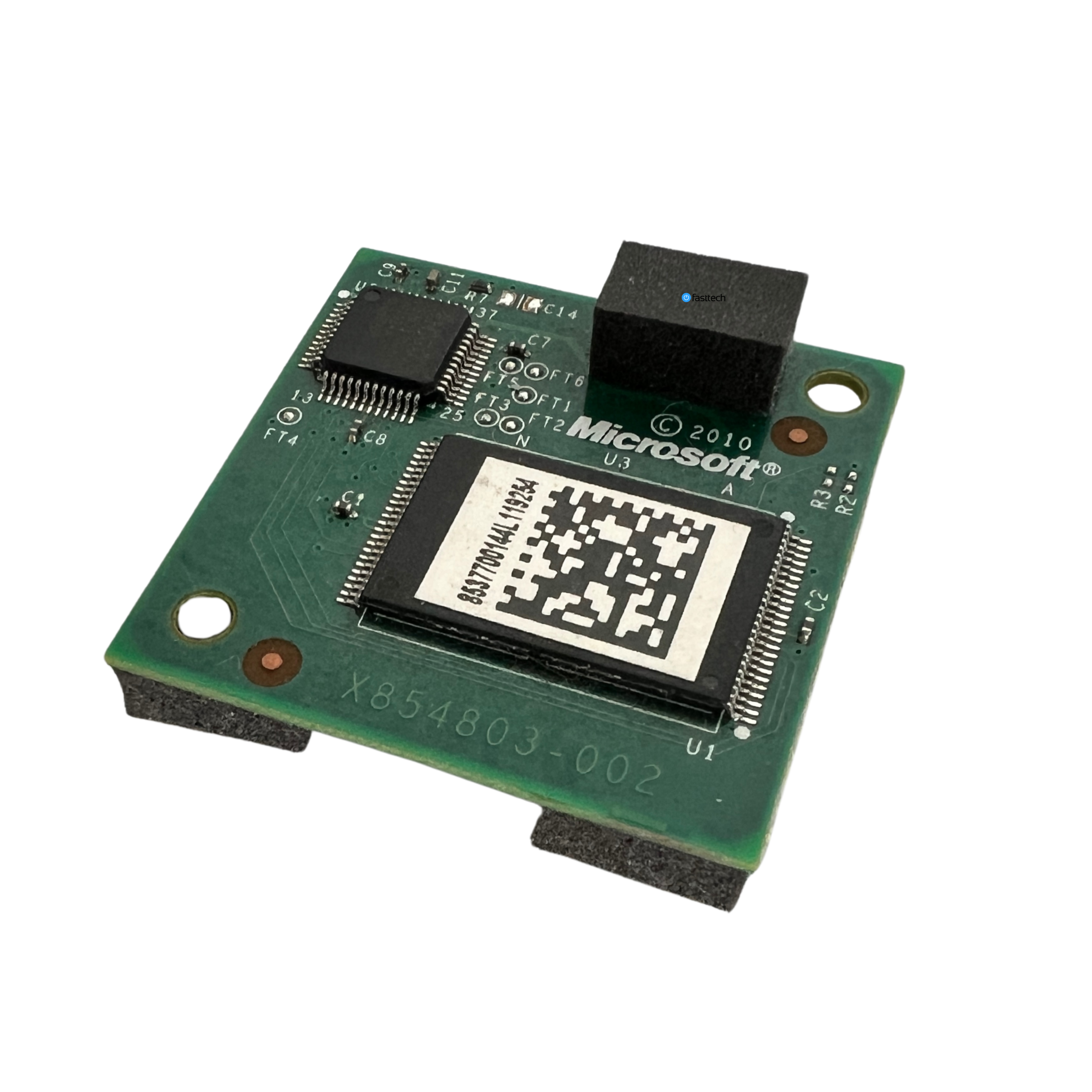

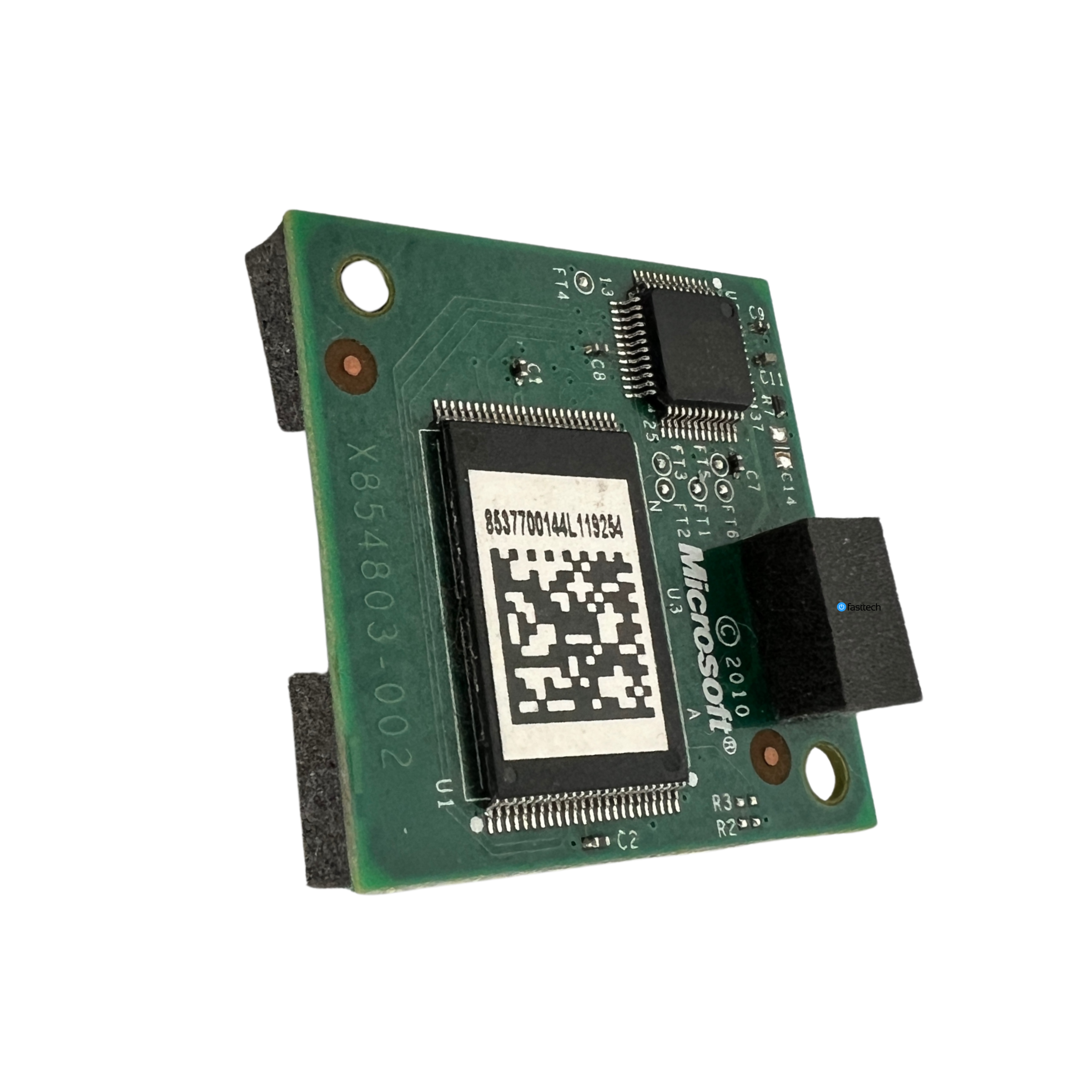

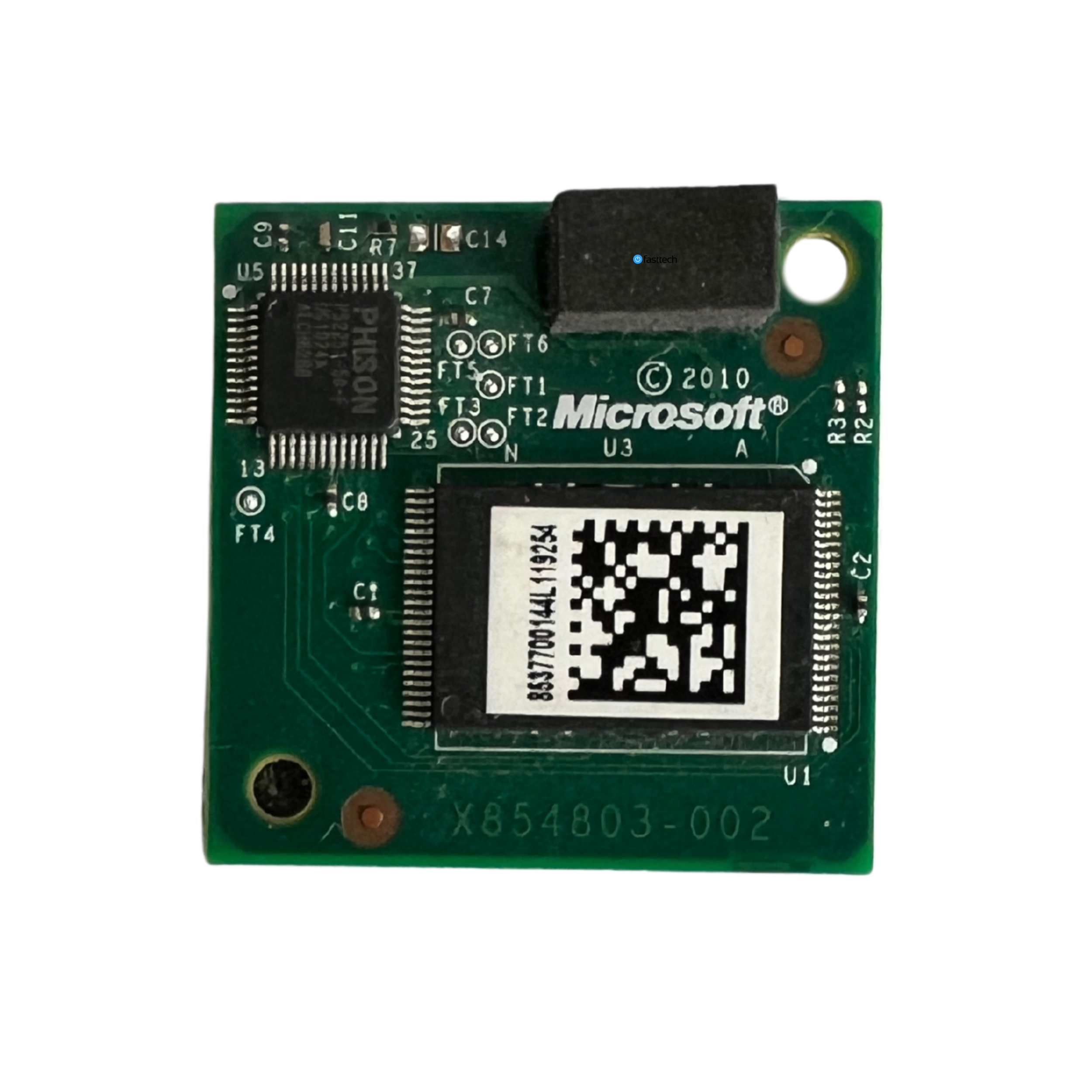

If your Xbox 360 S is not making the beep sound it usually makes when you touch the power sensor at the front and the system does not turn on at all, in some cases the culprit is a defective RF Board Module. This part also houses the green LEDs that indicate when a controller is connected. The power and eject sensor cable from the faceplate also connects to this part.
